Condition: Very good

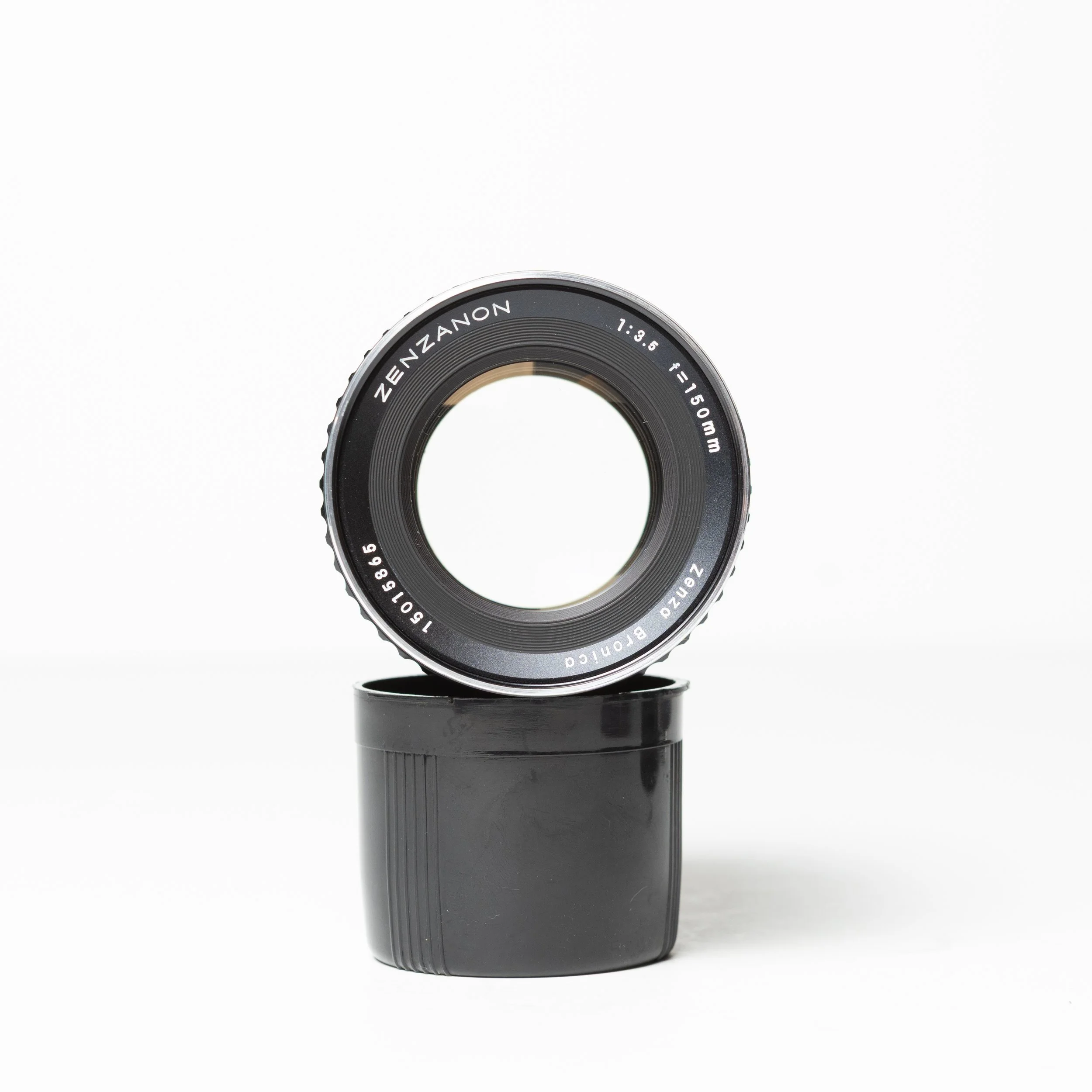

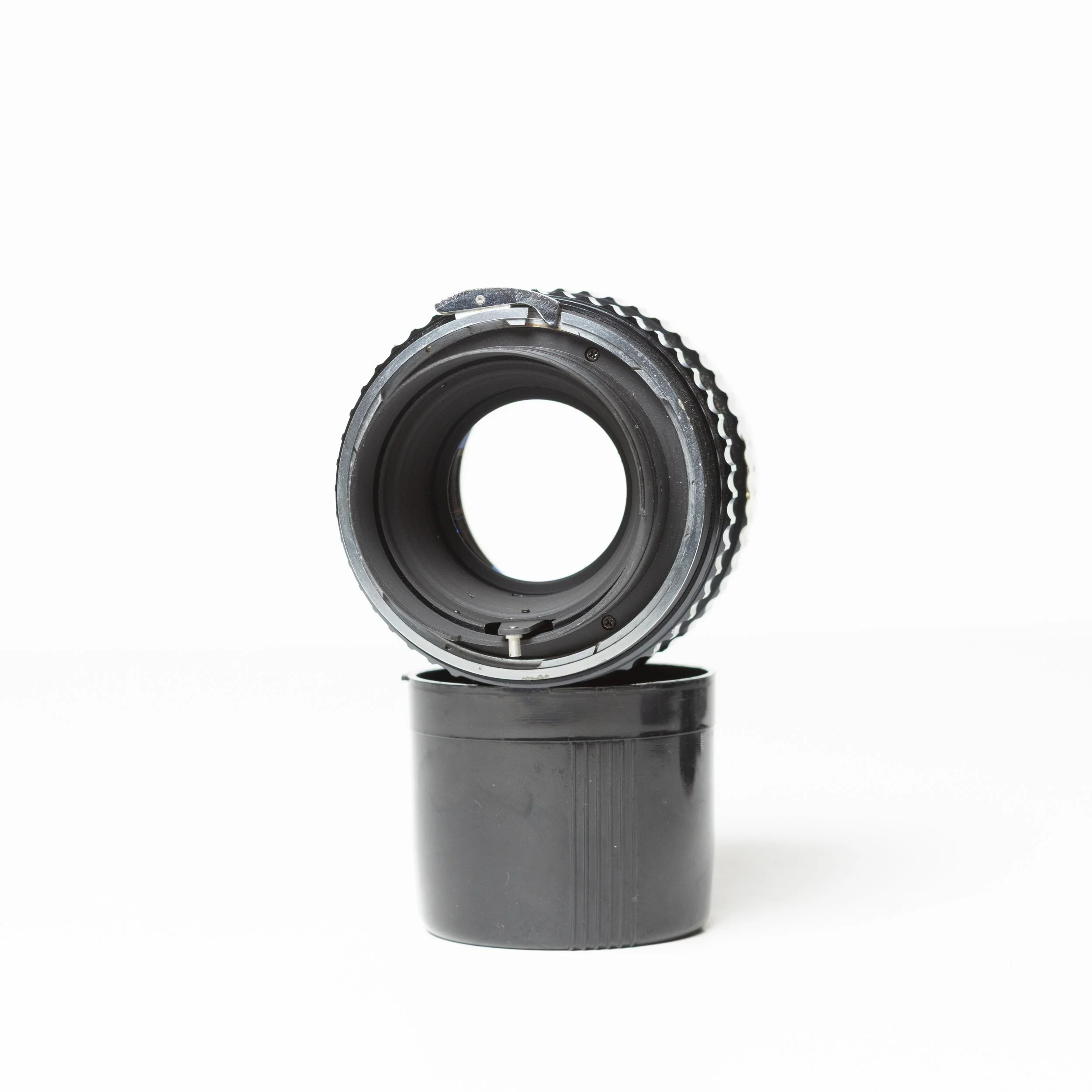

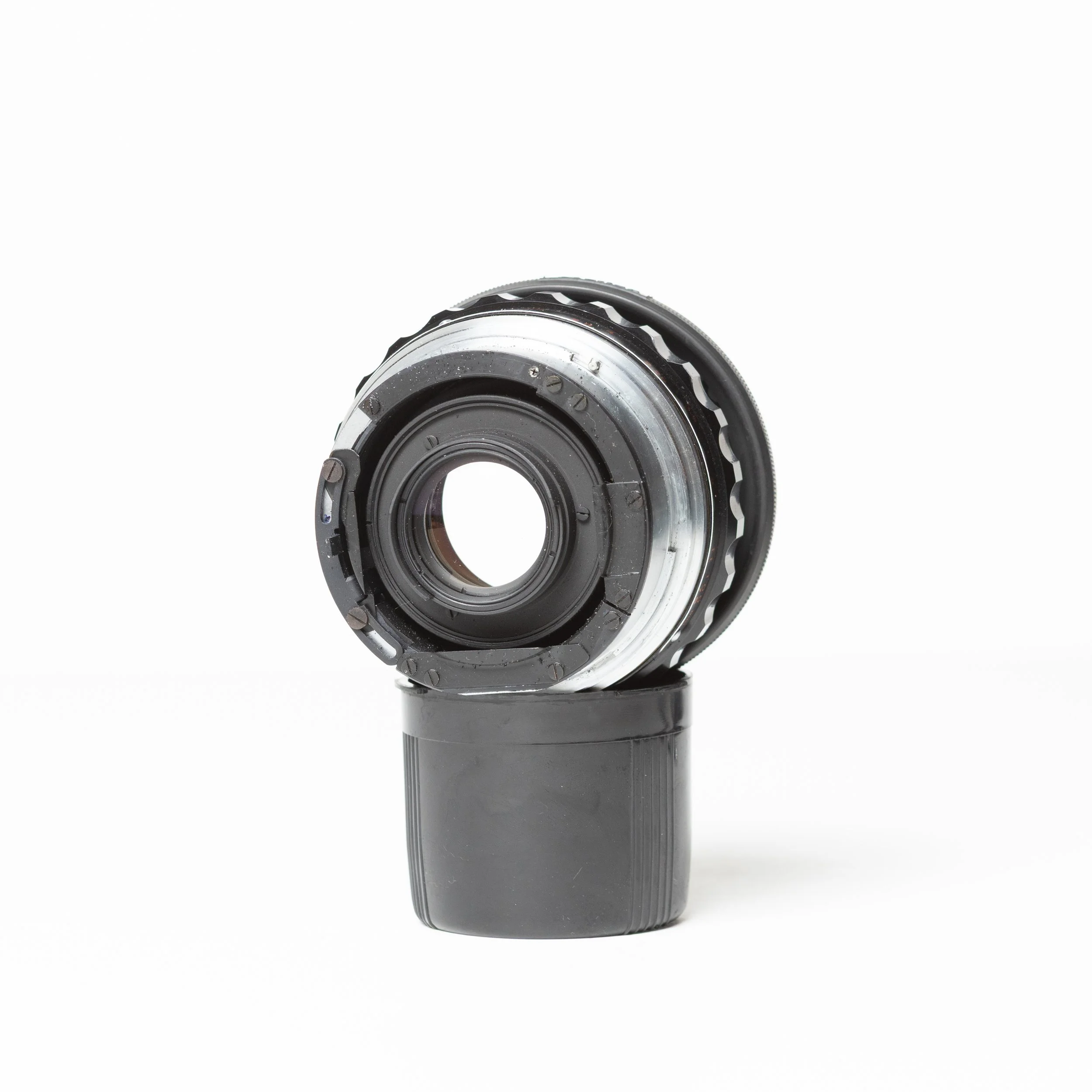

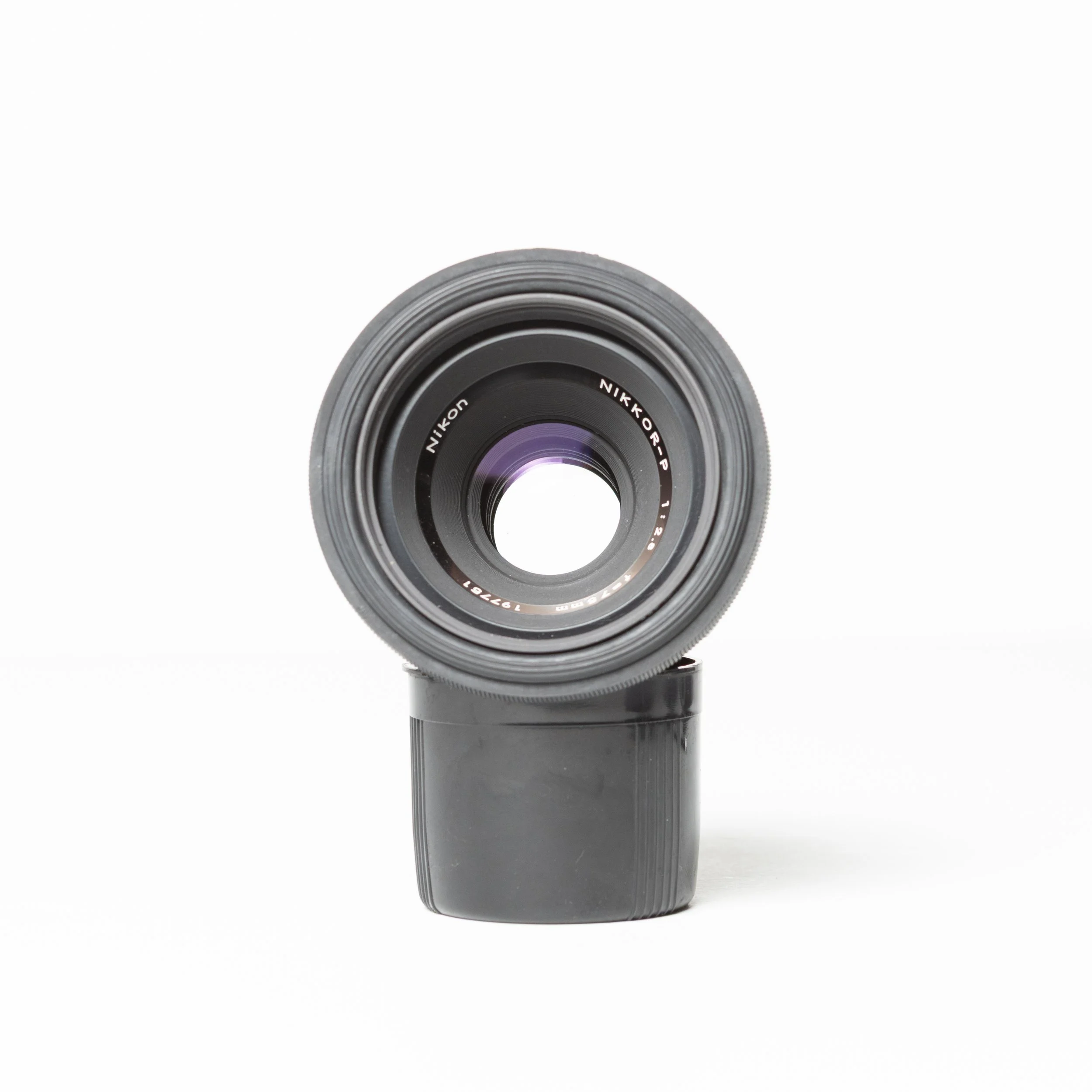

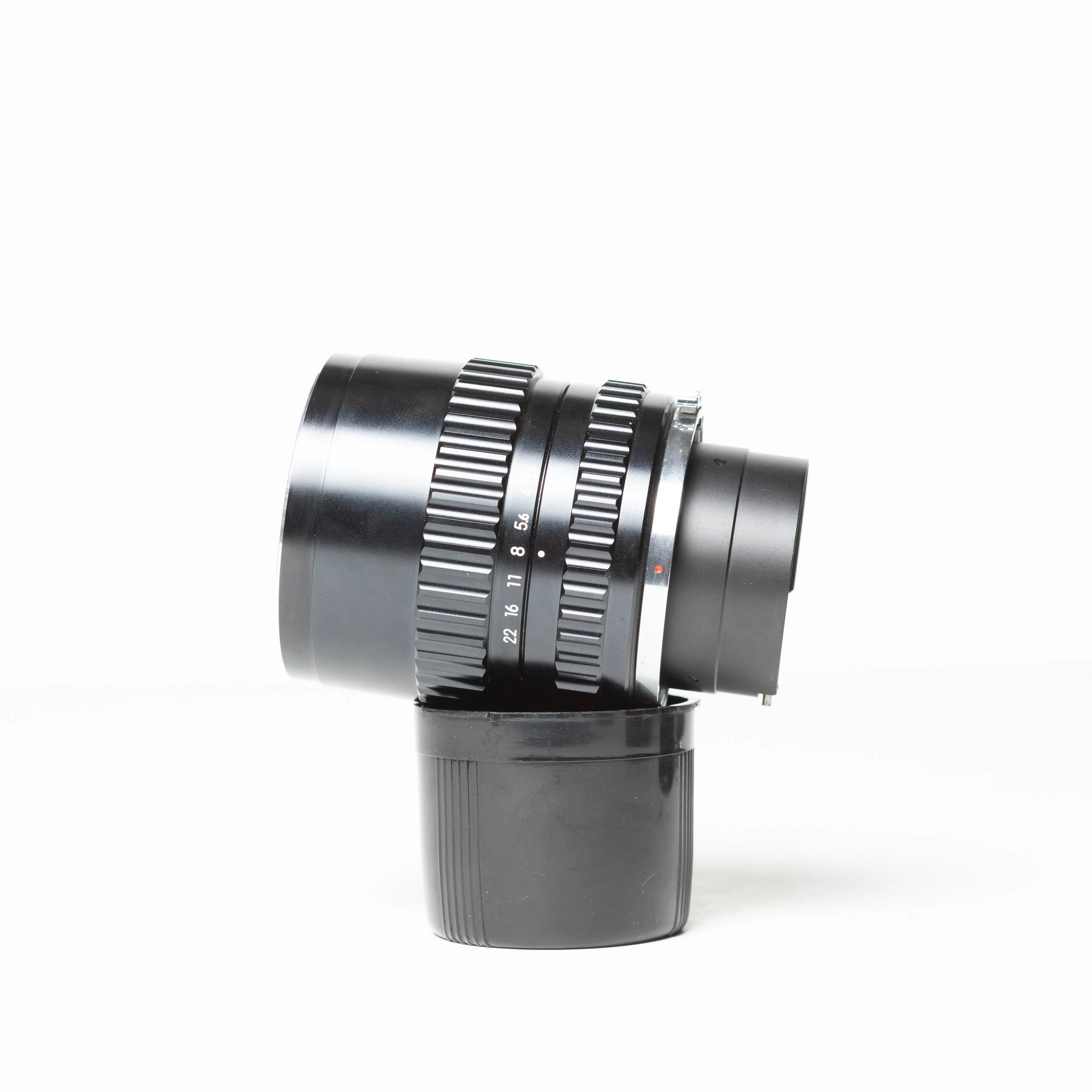

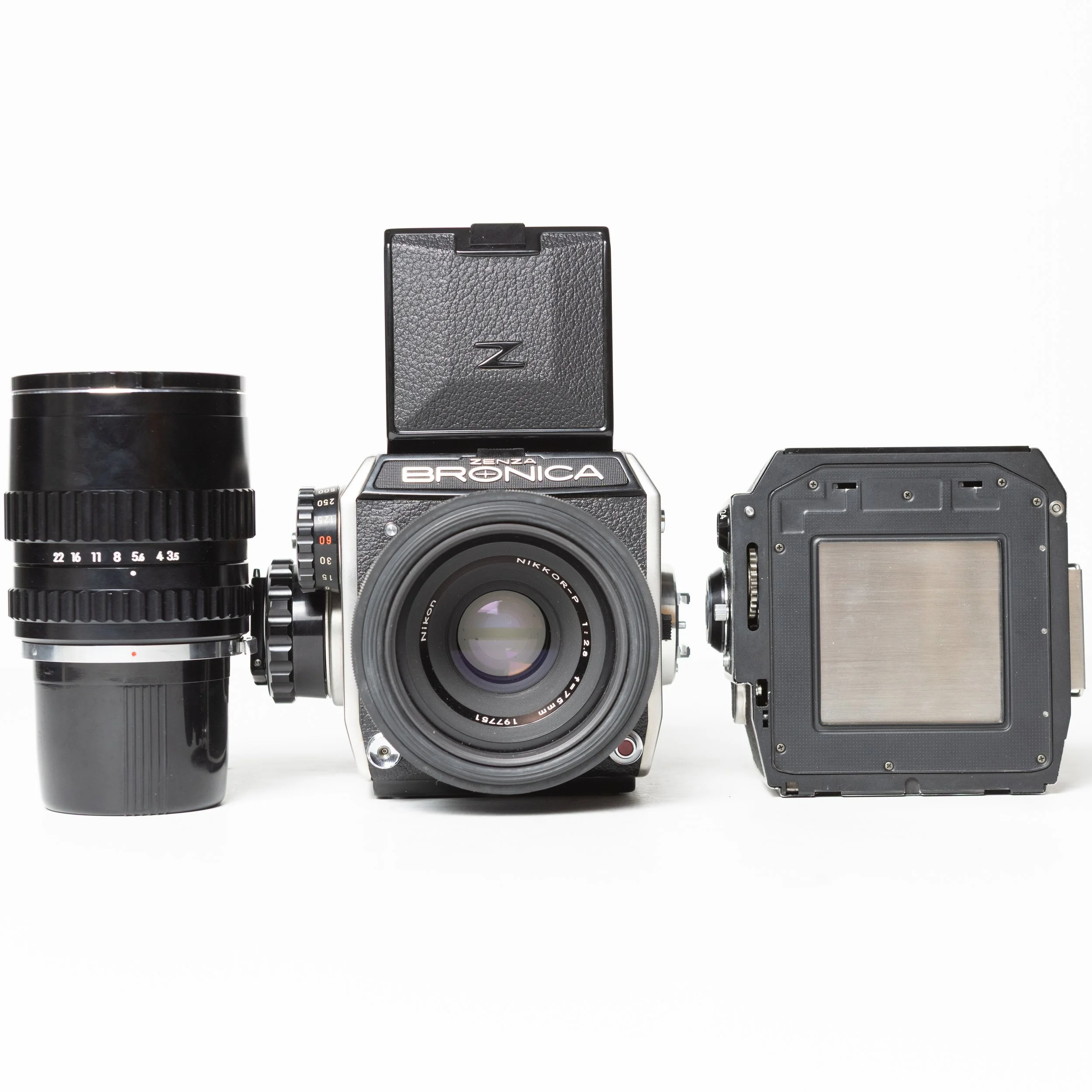

Includes: 75mm 2.8 lens, 150mm 3.5 lens, 2× 120 backs.

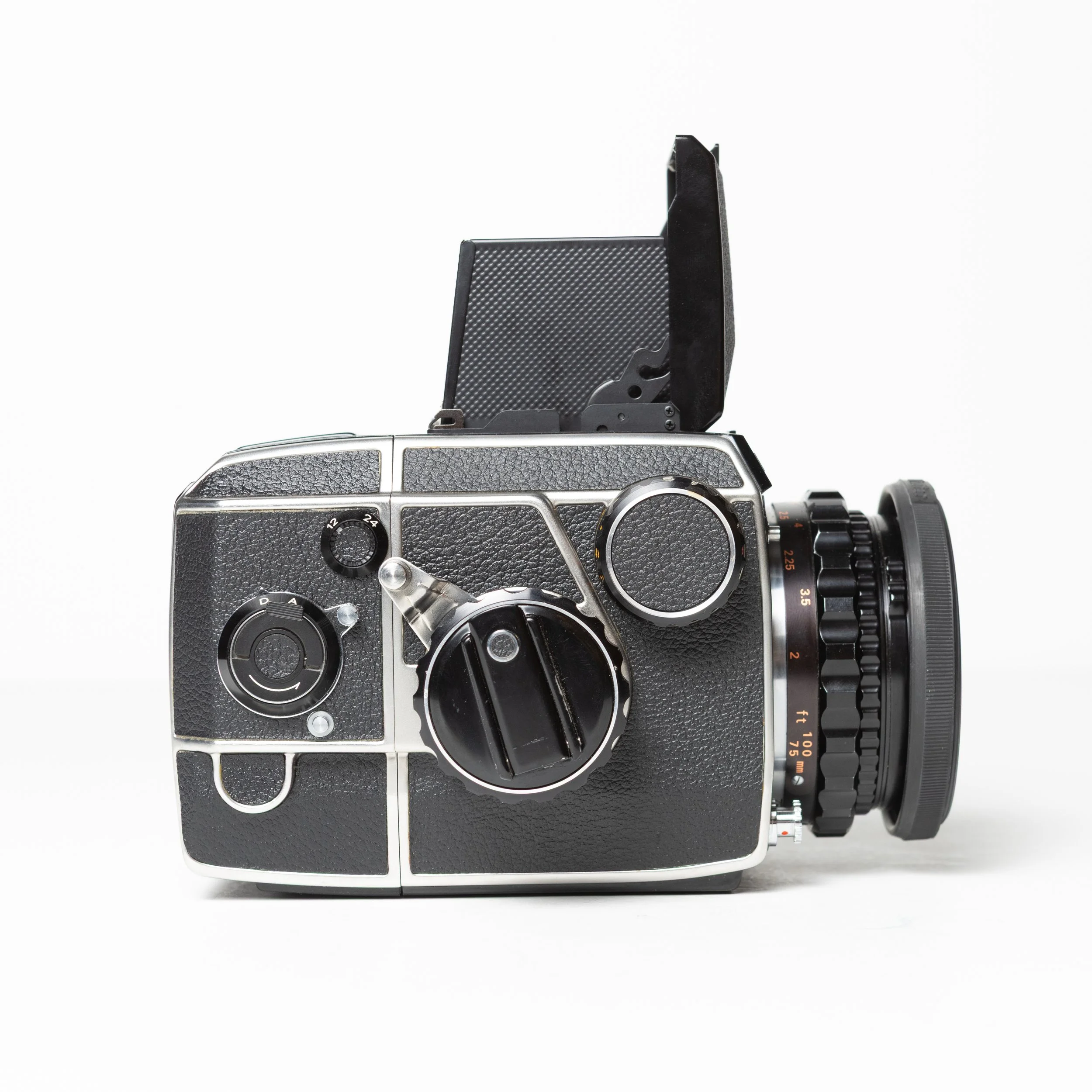

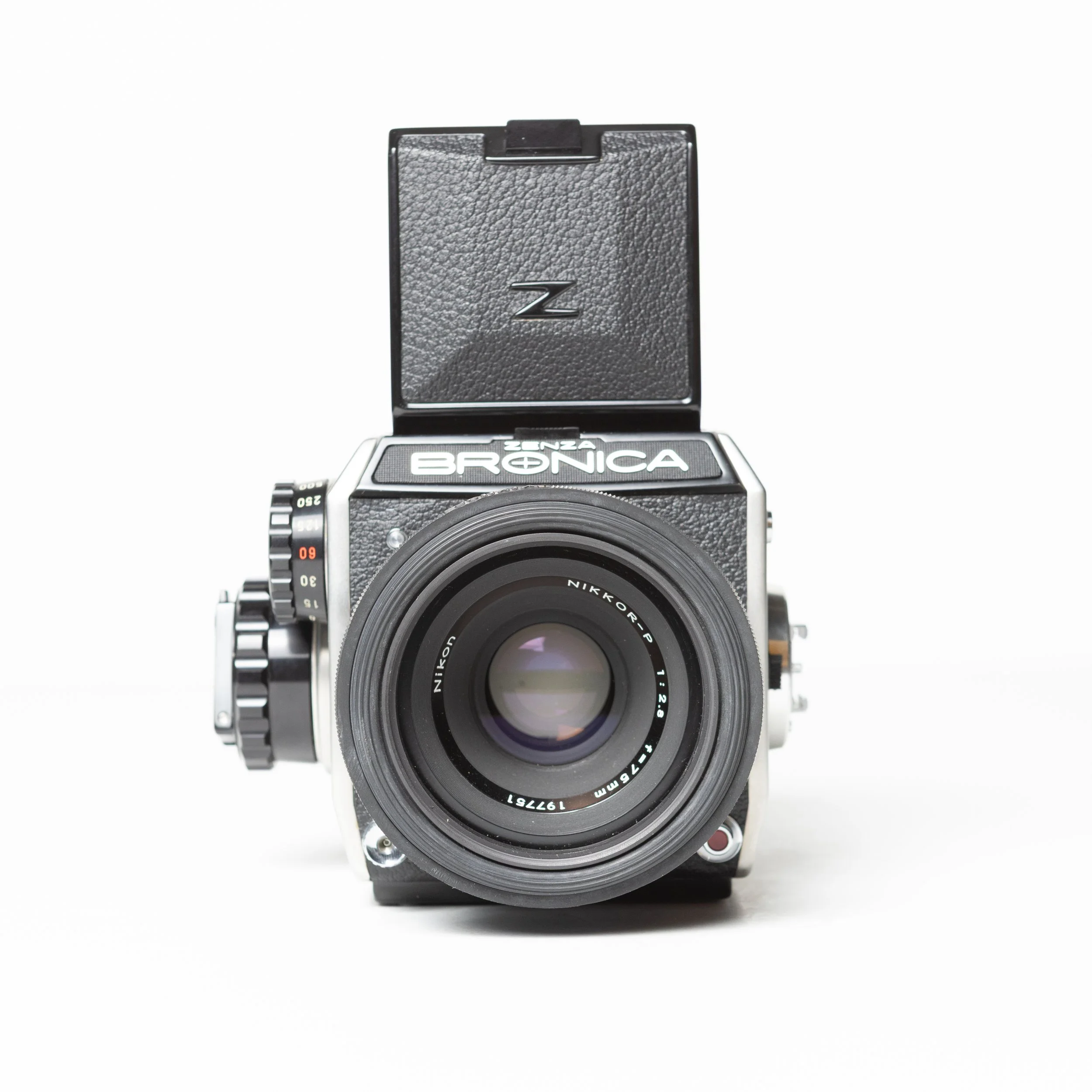

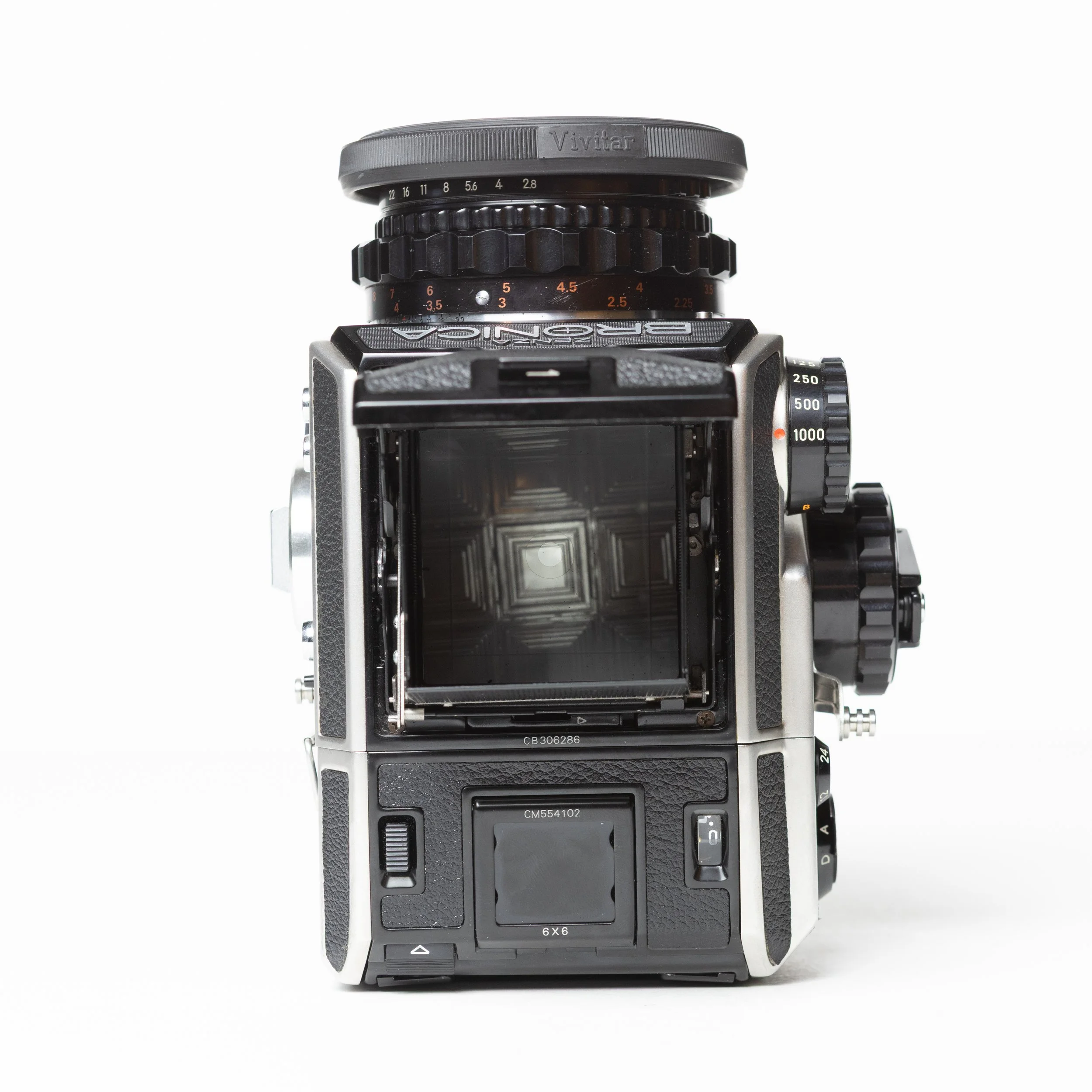

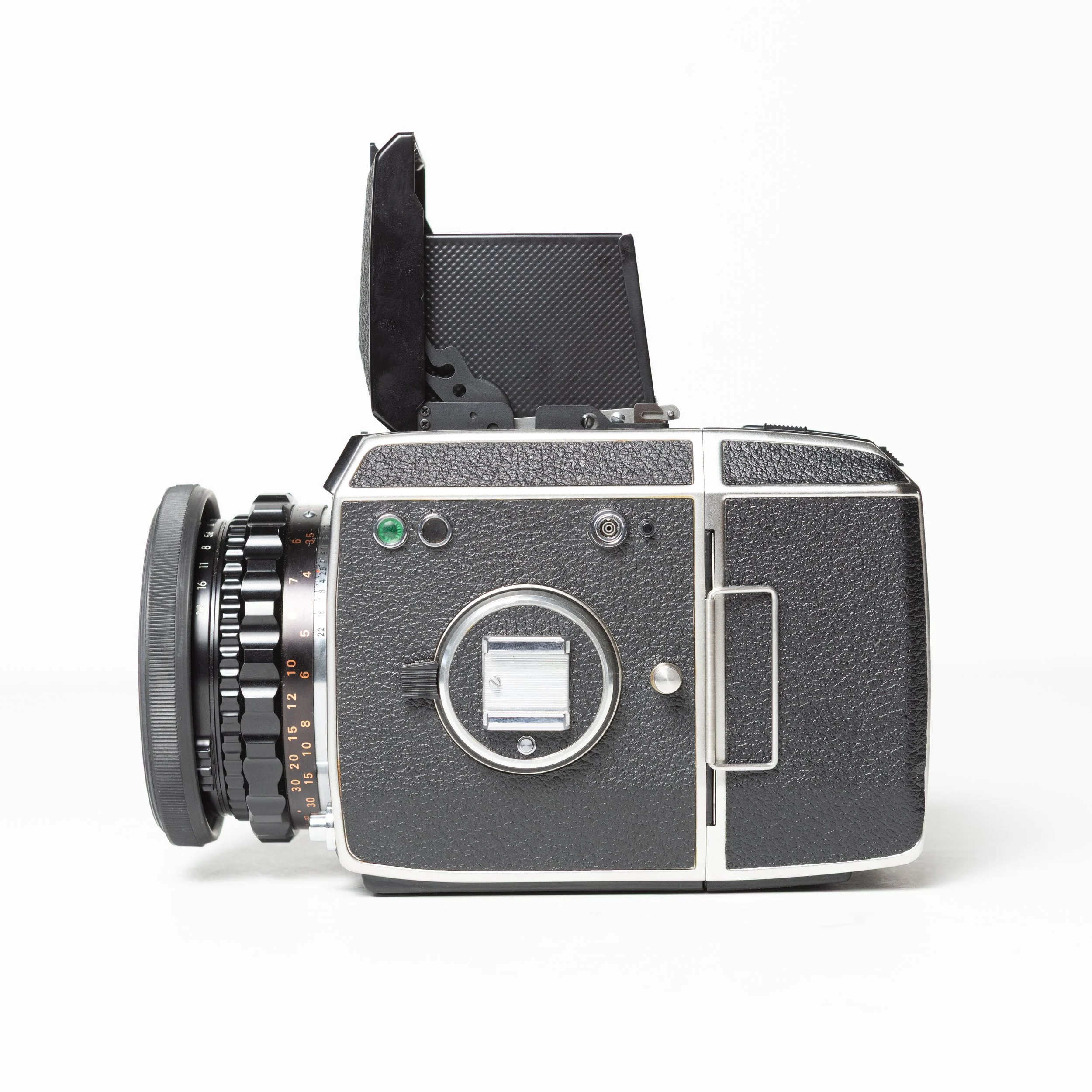

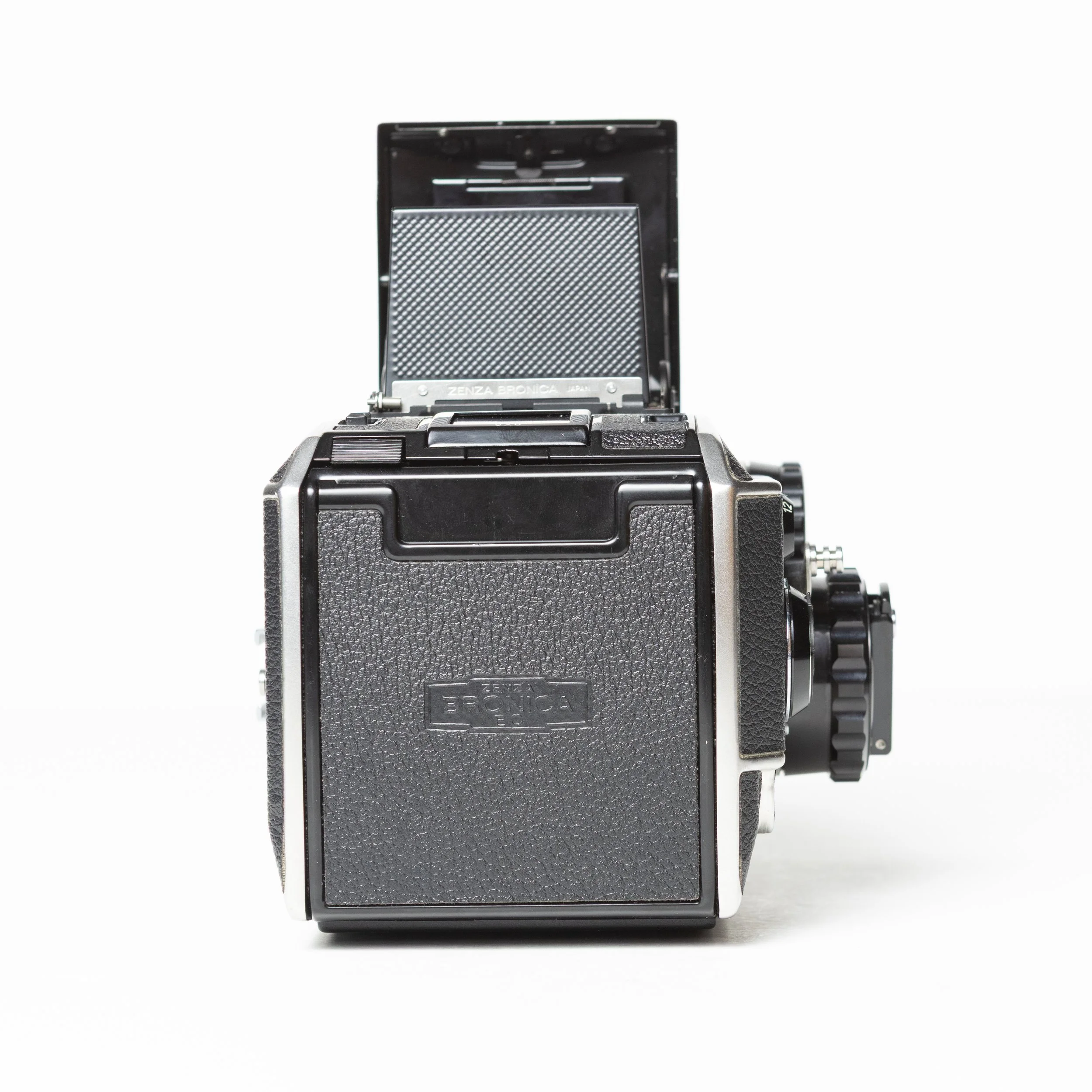

Zenza Bronica EC — Technical Specifications

📸 General / Format

• Camera Type: 6×6 cm medium-format SLR

• Frame Size: 55.2 mm × 55.2 mm

• Film Types: 120 or 220 roll film

  • 12 exposures on 120

  • 24 exposures on 220

• Interchangeable film backs for mid-roll changes and different film stocks

🔧 Lens & Mount

• Lens Mount: Interchangeable

  • Supports large bayonet, small bayonet, or 57 mm screw-mount lenses (depending on lens)

• Focusing: Built-in removable helicoid focusing system

• Wide-angle capability: Split-mirror design allows use of non-retrofocus wide-angle lenses

• Telephoto: Longer lenses may require extension tubes for close-focus

🔍 Viewfinder & Focusing Screen

• Interchangeable viewfinders (waist-level, prism, metered prism, etc.)

• Interchangeable focusing screens

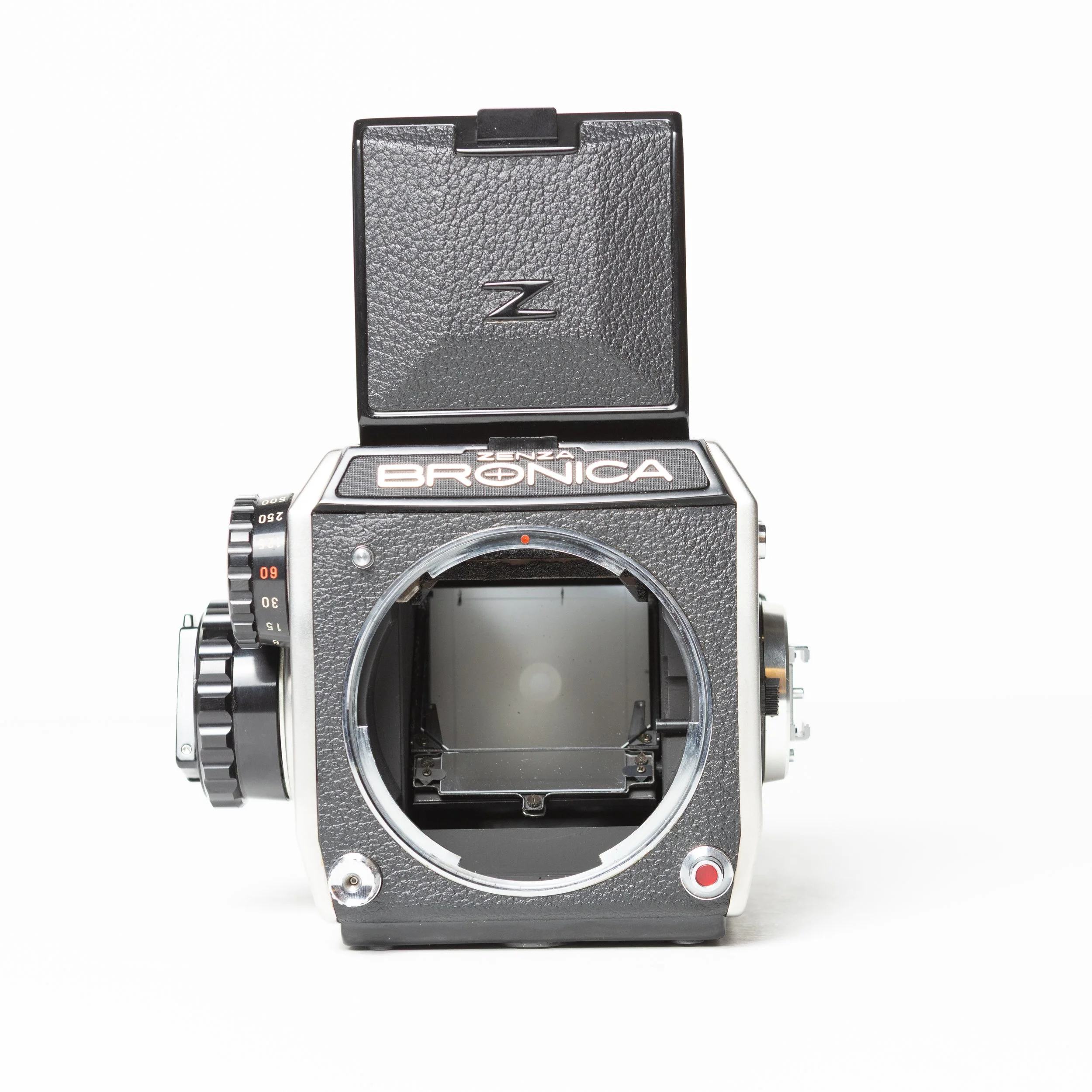

• Two-piece split mirror:

  • Front half flips up

  • Rear half flips down

  • Reduces mirror clearance issues with wide lenses

⏱ Shutter & Exposure

• Shutter Type: Electronically controlled vertical-travel focal-plane shutter

• Shutter Speeds:

  • B, 4 s, 2 s, 1 s

  • 1/2, 1/4, 1/8, 1/15

  • 1/30, 1/60, 1/125

  • 1/250, 1/500, 1/1000 (top speed)

• Flash Sync Options:

  • X (1/60s)

  • M (1/15s)

  • F (1/30s)

  • FP for flash bulbs (sync up to 1/125–1/1000 depending on bulb type)

• Depth-of-field preview button

• Multiple exposure capability

🔋 Power & Operation

• Battery: 1 × PX-28 / 4LR44 6V battery

• Film Advance: Manual crank

• Mirror Lock-Up: Built-in thanks to split-mirror design

📏 Size & Weight

• Dimensions: 139 × 117 × 170 mm

• Weight: ~1,980 g (about 4.4 lb)

📝 Additional Notes

• Fully modular: finders, backs, screens, and lenses are all interchangeable

• Known for excellent build quality and unique mirror system

• One of the first electronically controlled medium-format SLRs

• Compatible with Nikkor, Zenzanon, and some third-party lenses
